A class diagram is an important UML artifact in object-oriented programming & describes the structure of system under design along with relationships among other classes.

Step 1 – Download UML Modeling Tool

There are various open-source or free UML modeling tools available. We have used ArguUML, which supports UML version 1.4 (don’t worry about UML Version – Class diagrams have been supported for a very long time).

Link to download:

Step 2 – Model Classes for Class Diagram

You can simply use whiteboard or paper to write down list of classes (or domain objects).
For example,

We have taken an example of Payment module (a simplified example with few classes):

  • Customer
  • Card
    • Credit Card
    • Debit Card

Step 3 – Create UML project in ArgoUML

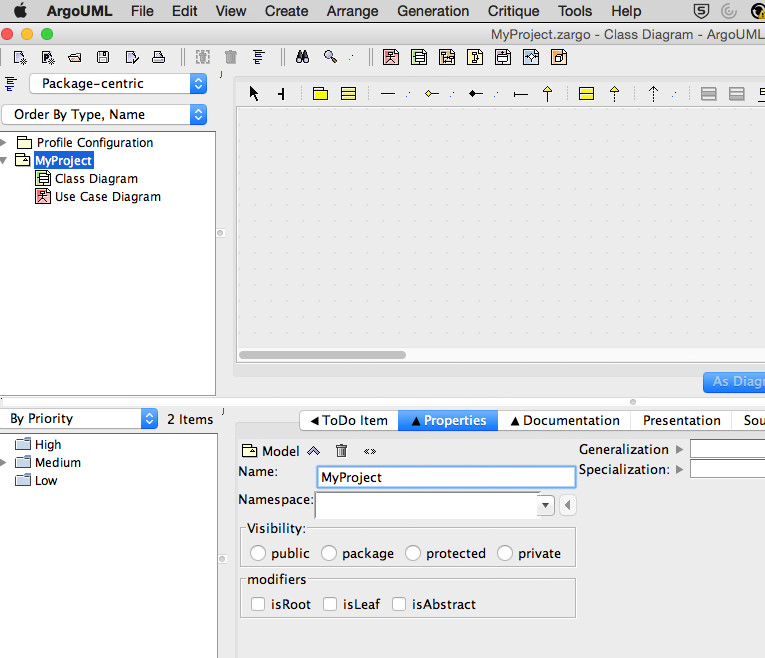

Create a New Project in ArgoUML & click on “Class Diagram” in the left-navigation (perspective pane):

Class Diagram - Project
Class Diagram – Project


Step 4 – Put your Class Model on Class Diagram

  • Click on “New Class” from tools palette
New Class
New Class

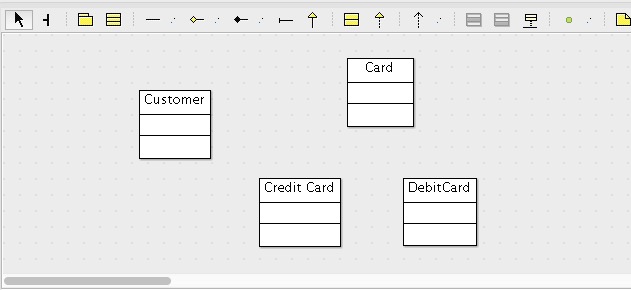

  • Double-click on Title of Class artifact & provide name for the class. Repeat it for all 4 classes.
Class Diagram - Classes
Class Diagram – Classes


Step 5 – Add Class Attributes & Methods

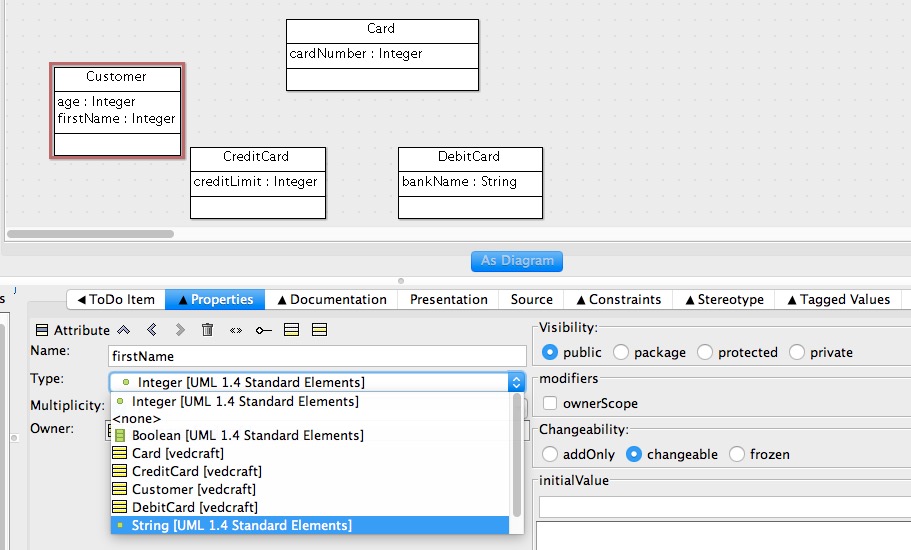

  • Double-click on Customer class (attribute section – middle of Class) to add attribute.
Class - New Attribute
Class – New Attribute
  • Repeat the process to add attributes for remaining classes:
Class Diagram - All Attributes
Class Diagram – All Attributes

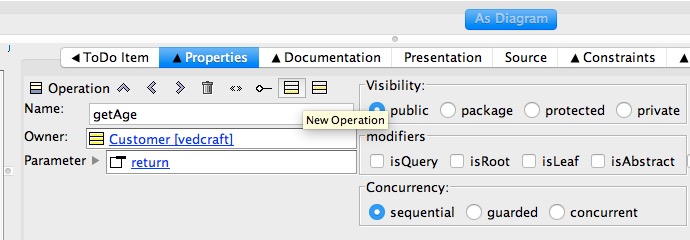

  • Add all methods respective to the classes by clicking in Method Section of Class
Class Diagram - Add Method
Class Diagram – Add Method

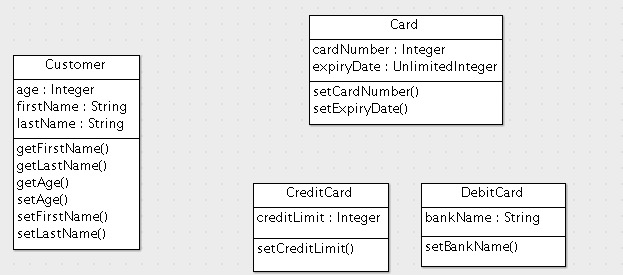

  • Repeat this process for all classes:
Class Diagram - All Methods
Class Diagram – All Methods

Step 6 – Draw relationships between Classes

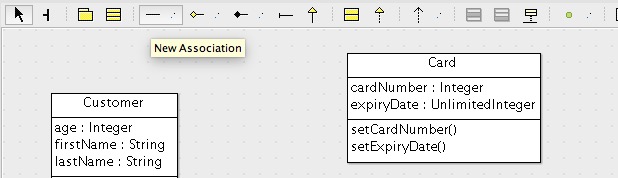

  • Customer class has “association” relationship with Card Class, which indicates that they are linked:
Association Tool
Association Tool

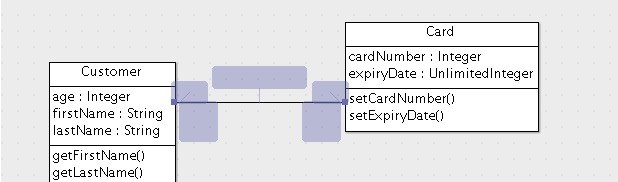

  • Drag and drop association relationship between Customer & Card classes:
Class Diagram - Association
Class Diagram – Association

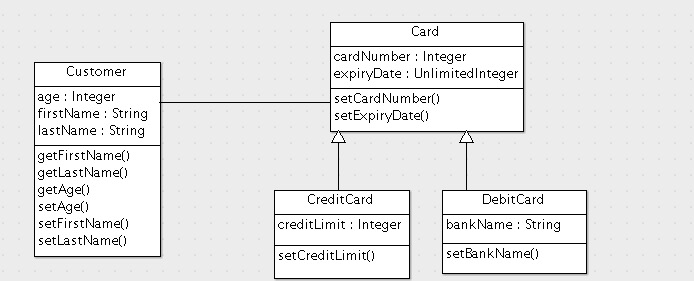

  • Add a Generalization relationship between Card, DebitCard & CreditCard classes. Generalization relationship indicates that Card is superclass for DebitCard & CreditCard classes.
Class Diagram - Generalization
Class Diagram – Generalization

This concludes basics of Class Diagram creation using UML editor like ArgoUML. This can easily be converted into any object-oriented programming language like Java using tools.

As software architect, you need to produce design models like class diagram, which communicates design of system under consideration to developers.
